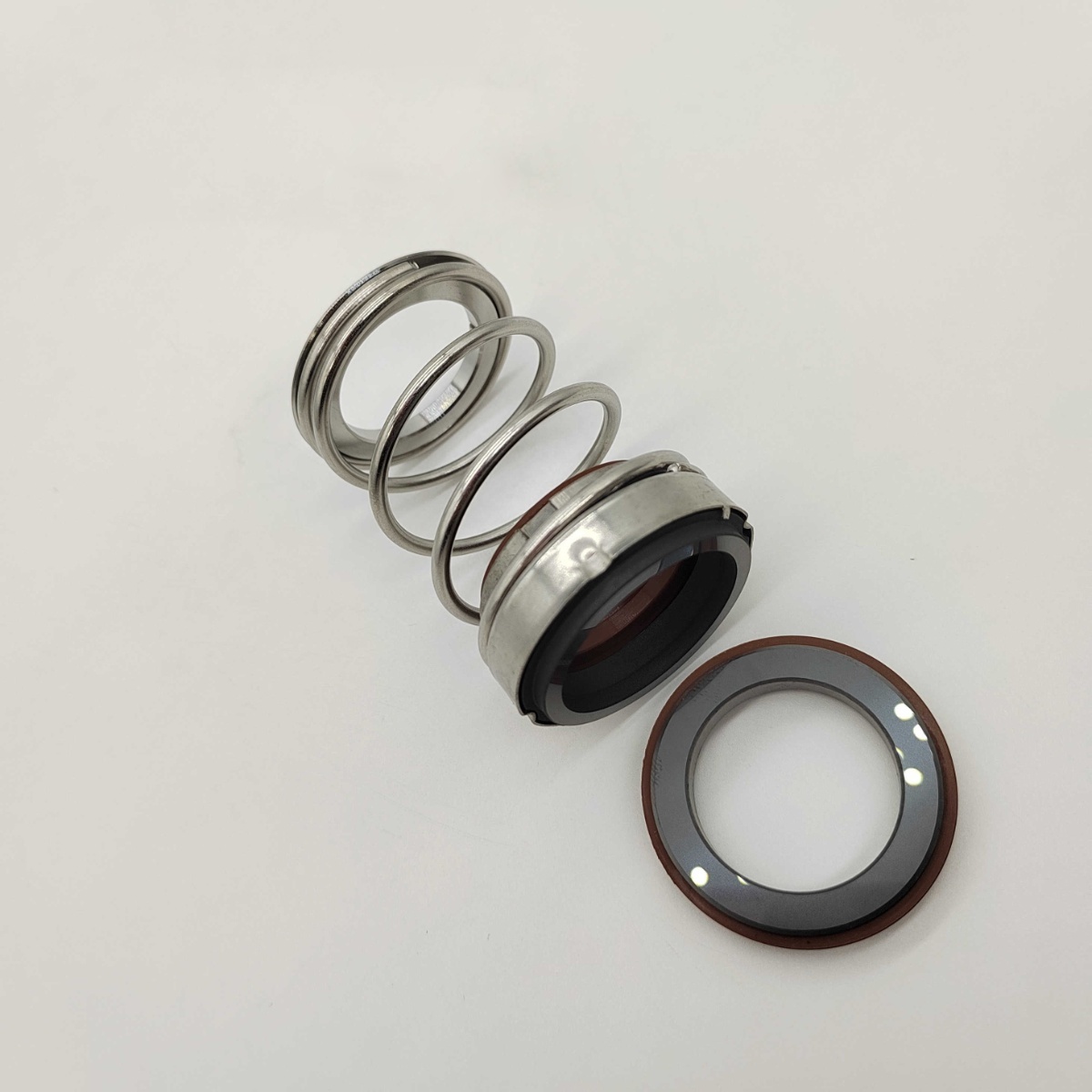

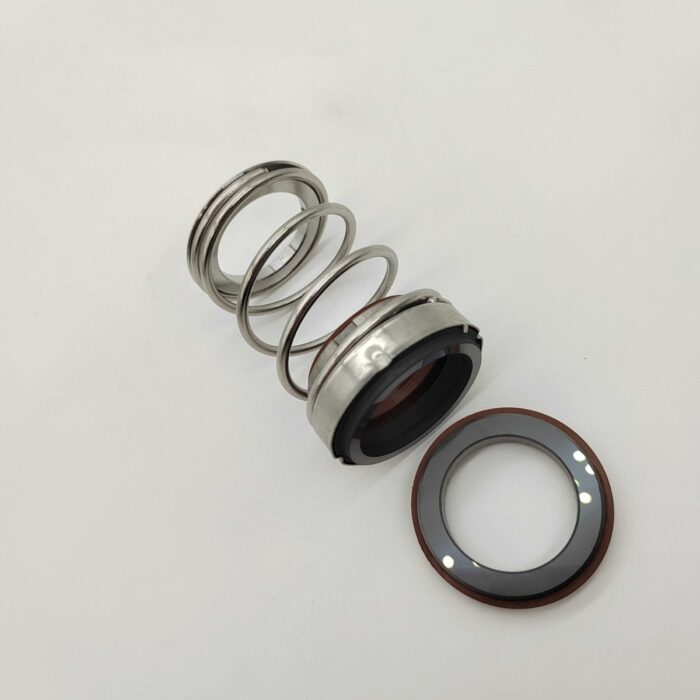

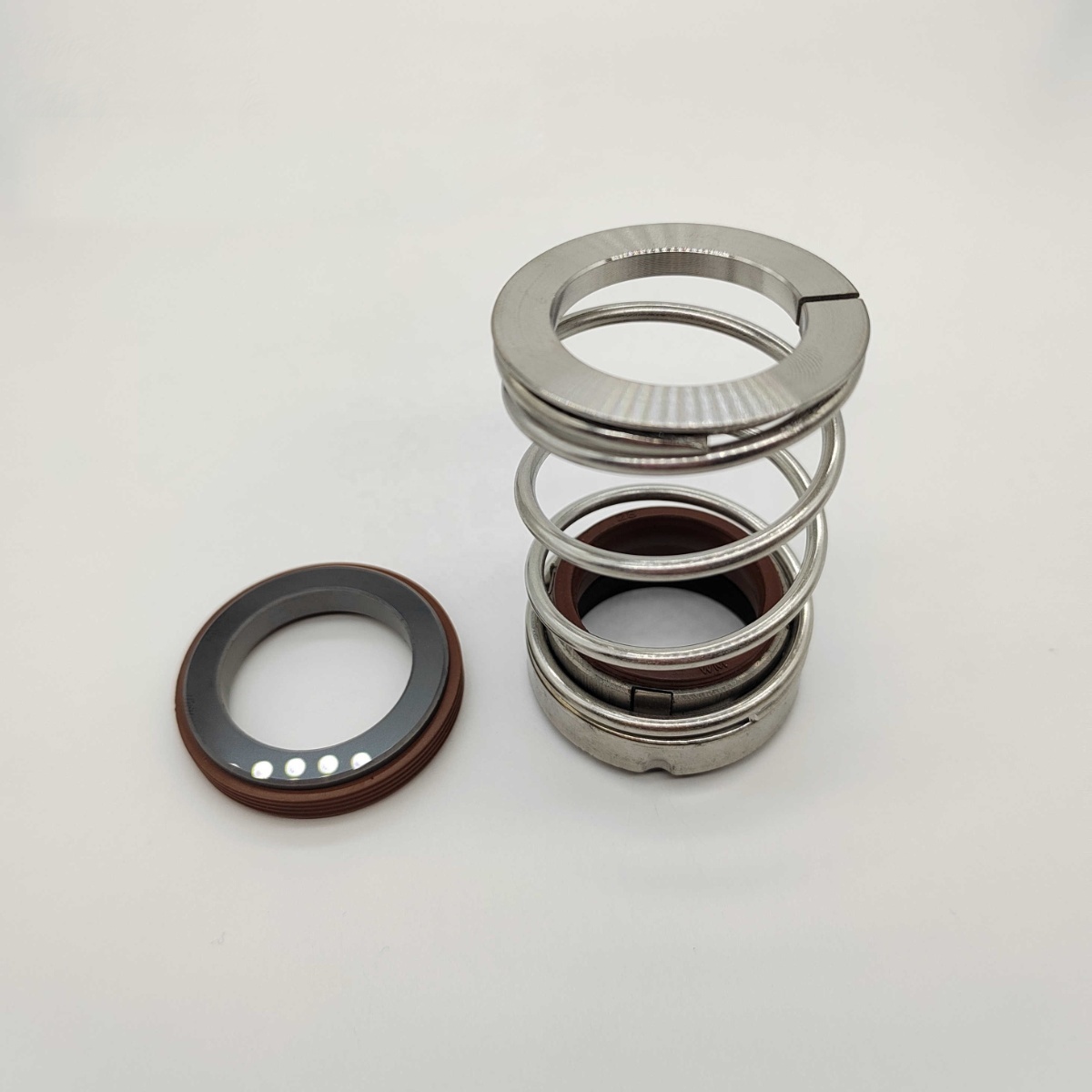

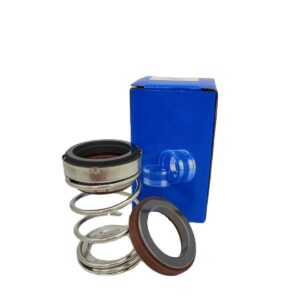

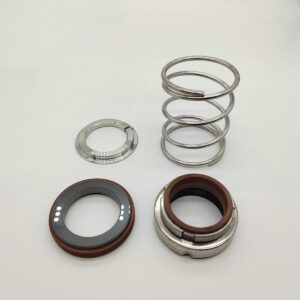

Built for Pressure, Designed for Precision | Industrial Duty 25.4mm Elastomer Bellows Shaft Seals
The Industrial Duty 25.4mm Elastomer Bellows Shaft Seals are precision-engineered for high-efficiency performance in demanding pump applications. Designed specifically for shafts with a 25.4mm diameter, these mechanical seals use flexible elastomer bellows to absorb shaft misalignments while maintaining a tight, secure seal. Built for industrial-grade durability, they are constructed using premium materials such as carbon, stainless steel, and wear-resistant elastomers. Ideal for centrifugal pumps, circulation systems, and low-pressure fluid systems, these seals offer excellent chemical compatibility, thermal stability, and resistance to abrasive wear—making them a cost-effective and long-lasting sealing solution.
These 25.4mm elastomer bellows shaft seals are especially suited for applications where alignment issues and fluctuating pressures are common. Their self-adjusting bellows design ensures consistent sealing performance even under axial movement or thermal expansion, reducing the risk of leakage and downtime. Whether in continuous-duty pumps, fire protection systems, or fluid transfer setups, these seals help extend equipment life and improve operational efficiency. With easy installation and minimal maintenance requirements, they are a smart investment for engineers and maintenance teams looking for reliable sealing in challenging environments.
Product Specifications
| Attribute | Specification |
|---|---|
| Product Name | Industrial Duty 25.4mm Elastomer Bellows Shaft Seals |
| Standard or Nonstandard | Standard |
| Rotary Ring | SIC |
| Stationary Ring | SIC |
| Secondary Seal | V(FKM) |
| Temperature Range | -20℃ ~ 180℃ |
| Sample | Yes (US$9.53) |
| Color | Brown |
| Size | 25.4 mm |
| Pressure Rating | Up to 1.2 MPa |
| Speed Limit | ≤15 m/s |
| Application | Industrial Pumps |
| Material Grade | Corrosion & Wear Resistant |
| Seal Type | Balanced |
| Mounting Type | Cartridge / Component |
| Spring Type | Single Spring |
| Media Compatibility | Water, Oil, Chemicals |
Why Choose Industrial Duty 25.4mm Elastomer Bellows Shaft Seals?
🔹 Designed for precise 25.4mm shaft applications in industrial pumps
🔹 Elastomer bellows provide superior flexibility and misalignment compensation
🔹 High resistance to thermal cycling and fluid contamination
🔹 Built from durable carbon, stainless steel, and chemical-resistant elastomers
🔹 Suitable for both clean water and light chemical mixtures
🔹 Quick installation with no need for complex mechanical adjustments
🔹 Cost-effective for OEMs and large-scale maintenance operations
🔹 Low-maintenance with a long operational life
🔹 Reduces shaft wear and prevents leakage even under vibration
🔹 Tested for consistent sealing under dynamic pump loads
Application of Industrial Duty 25.4mm Elastomer Bellows Shaft Seals
🔹 Industrial Pumps – Ensures efficient sealing in process pumps, water pumps, and transfer pumps
🔹 HVAC Systems – Helps maintain performance in heating and cooling systems
🔹 Water Treatment Plants – Effective for sealing in filtration and flow control equipment
🔹 Chemical Handling – Withstands mildly corrosive environments in fluid delivery systems
🔹 Agricultural Irrigation – Performs reliably in irrigation and water supply systems
🔹 OEM and Aftermarket Use – Suitable for both original manufacturing and replacement needs
🔹 Marine Applications – Protects shafts and systems exposed to saltwater and humidity
🔹 Fire Protection Systems – Provides reliable sealing for centrifugal fire pump assemblies
🔹 Automated Processing Systems – Maintains fluid integrity in machine operations
Order Now – Get Your Industrial Duty 25.4mm Elastomer Bellows Shaft Seals Today!
Upgrade your pump performance with the Industrial Duty 25.4mm Elastomer Bellows Shaft Seals—designed for industrial reliability, long service life, and exceptional sealing even under misaligned or vibrating conditions. These seals offer the flexibility and durability needed for fluid systems across multiple sectors. Don’t compromise your operations with inferior sealing—trust in proven elastomer bellows technology that keeps your systems running cleaner, cooler, and longer. Ideal for both manufacturers and repair professionals, this product is the smart choice for dependable, industrial-strength sealing.
