Built for Pressure, Designed for Precision | High Quality Standard 1.0MPa Pressure Pump Mechanical Seal
The High Quality Standard 1.0MPa Pressure Pump Mechanical Seal is engineered for efficient sealing in pump systems requiring stable performance under moderate pressure. Built to withstand demanding conditions such as chemical exposure, high-speed rotation, and temperature variations, this mechanical seal ensures leak-free operation across various industries.
Constructed using top-grade materials including carbon graphite, silicon carbide, ceramic, and tungsten carbide, it offers superior resistance to wear, corrosion, and fluid aggression. With compatibility across a wide range of liquids—from water and oil to corrosive and organic chemicals—it is perfect for both industrial and municipal pump systems.
This standard mechanical seal is designed according to DIN 24960, featuring flexible options for secondary seals in NBR, FKM, EPDM, or PTFE, and metal parts in SS304 or SS316 for optimal chemical and pressure resistance. With an operational limit of up to 1.0 MPa, 180°C, and 15m/s, this seal is a reliable component in any mechanical seal engineering setup.
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | High Quality Standard 1.0MPa Pressure Pump Mechanical Seal |
| Type | Standard Mechanical Seal |
| Standard | DIN 24960 |
| Pressure | ≤1.0 MPa |
| Temperature | -20℃ to 180℃ |
| Speed | ≤15 m/s |
| Medium | Water, Sewage, Sea water, Oil, Acid, Organic solvent, Crystalline acid, Amorphous acid, Alkali, Salt, Corrosive liquid, Non-corrosive liquid |
| Stationary Face Material | Ca (Carbon graphite), Sic (Silicon carbide), Cer (Ceramic), TC (Tungsten carbide) |
| Rotary Face Material | Ca (Carbon graphite), Sic (Silicon carbide), Cer (Ceramic), TC (Tungsten carbide) |
| Secondary Seal Material | NBR, FKM (VT), EPDM, PTFE |
| Colors | Brown, Black and White |

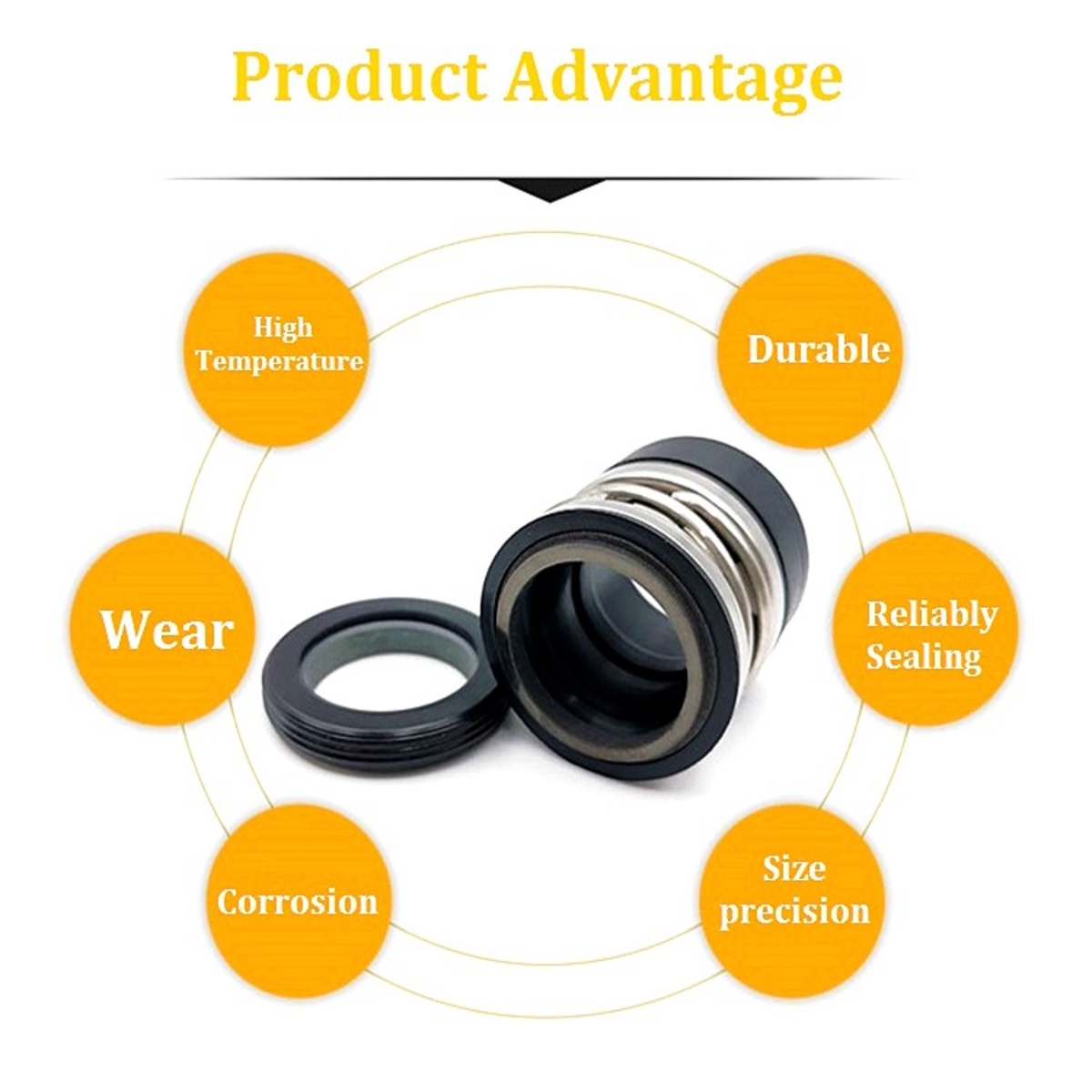

Why Choose High Quality Standard 1.0MPa Pressure Pump Mechanical Seal?
🔹 Designed for standard pressure pump sealing (up to 1.0 MPa)
🔹 Built to DIN 24960 for industry-standard compatibility
🔹 Exceptional material resistance to chemicals, oils, and corrosive fluids
🔹 Works with a wide range of media from water to crystalline and amorphous acids
🔹 Ideal for sewage, seawater, and oil transfer pumps
🔹 Available with various rotary and stationary face combinations
🔹 Secondary seal options for optimal flexibility and compatibility
🔹 Metal components made of high-grade SS304 or SS316
🔹 Suitable for various industrial, chemical, and municipal applications
🔹 Easy to install and supports long service life with minimal maintenance
Application of High Quality Standard 1.0MPa Pressure Pump Mechanical Seal
🔹 Water Pumps – Provides leak-free sealing in residential and industrial systems
🔹 Oil & Chemical Pumps – Suitable for aggressive fluid environments
🔹 Wastewater Treatment – Handles sewage, sludge, and corrosive effluents
🔹 Marine Applications – Works reliably in seawater and brine systems
🔹 Industrial Process Pumps – Maintains efficiency under chemical and pressure stress
🔹 OEM Manufacturing & Equipment Repair – Used in custom assemblies and replacement systems
Order Now – Get Your High Quality Standard 1.0MPa Pressure Pump Mechanical Seal Today!
Don’t compromise on sealing reliability—upgrade to the High Quality Standard 1.0MPa Pressure Pump Mechanical Seal for proven performance in fluid control systems. Whether you’re replacing worn components or building custom pump assemblies, this mechanical seal is built for long-lasting operation under challenging conditions. Backed by expert mechanical seal engineering, it’s easy to install, resistant to aggressive media, and delivers consistent sealing even at high speeds and moderate pressures. Order now to enhance your system’s efficiency, reduce downtime, and ensure dependable sealing in every application.
